Model Name |
QW15 |
|
System |
P2P |
Support |
ONVIF |
Support |
DDNS |
Support |

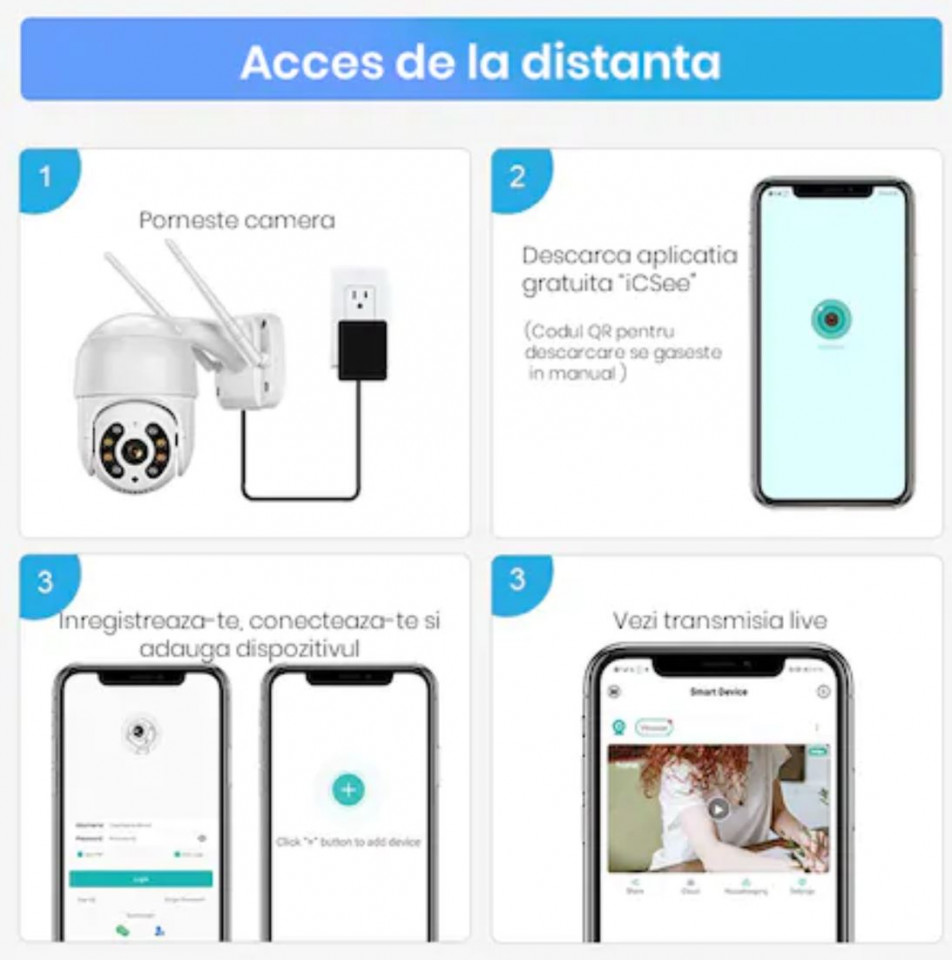

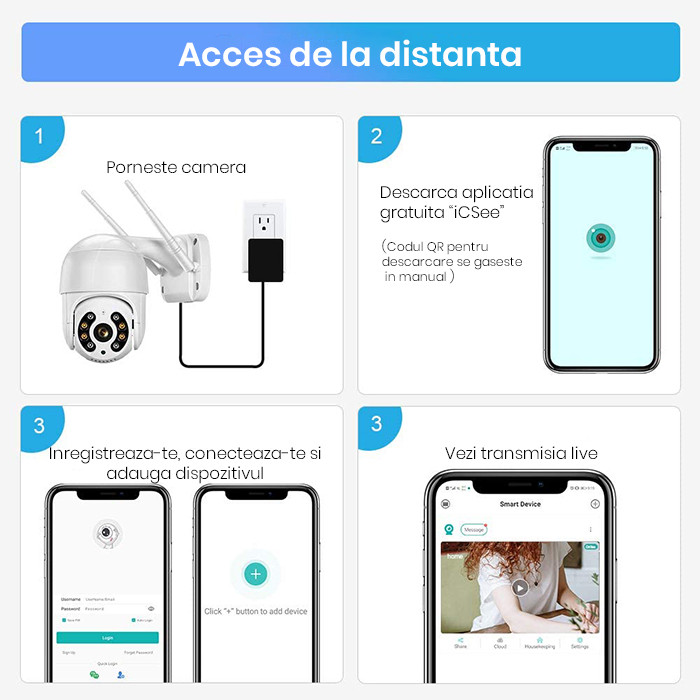

Mobilephone |
iPhone,Android |
CMS Soft |
Support Windows System,64 channel display |
MicroSD Card(Max 64G) |
Support Alarm,7x24 hours work |
Internet |
Network protocol |
HTTP,UDP,SMTP,FTP,DHCP,DNS,NTP,UPnP |
Wired |
RJ45 10/100MB Ethernet |
Wireless |
WIFI(IEEE 802.11b/g/n)2.4GHz |
Wireless rate |
150Mbps(Max) |
Online users |
Max support 5 online visit |
Code stream |
Double Code stream |
Lens |
Lens Kind |
HD Lens |
Sensor |
1/2.7" CMOS Sensor |
Resolution |
1920*1080(2.0MP) |
Lens |
Fixed: 4mm |
Angle |
65deg |
IR-CUT |
Support |
Video |
Video compression format |
H.264 |
Video frame rate |
1~25fps |
Resulution |
Main stream:1920*1080, Auxiliary stream:704x480 |
Image adjustment |
Brightness, contrast, saturation, chromaticity adjustment, 3.6mm lens. |
Minimum illumination |
0.4 LUX |
Signal to noise ratio |
>48dB |
Audio |
Audio compression format |
G.726/G.711 |
Built-in microphone |
Support |
External speaker |
Support |
PTZ |
Motor |
Built-in motor control |

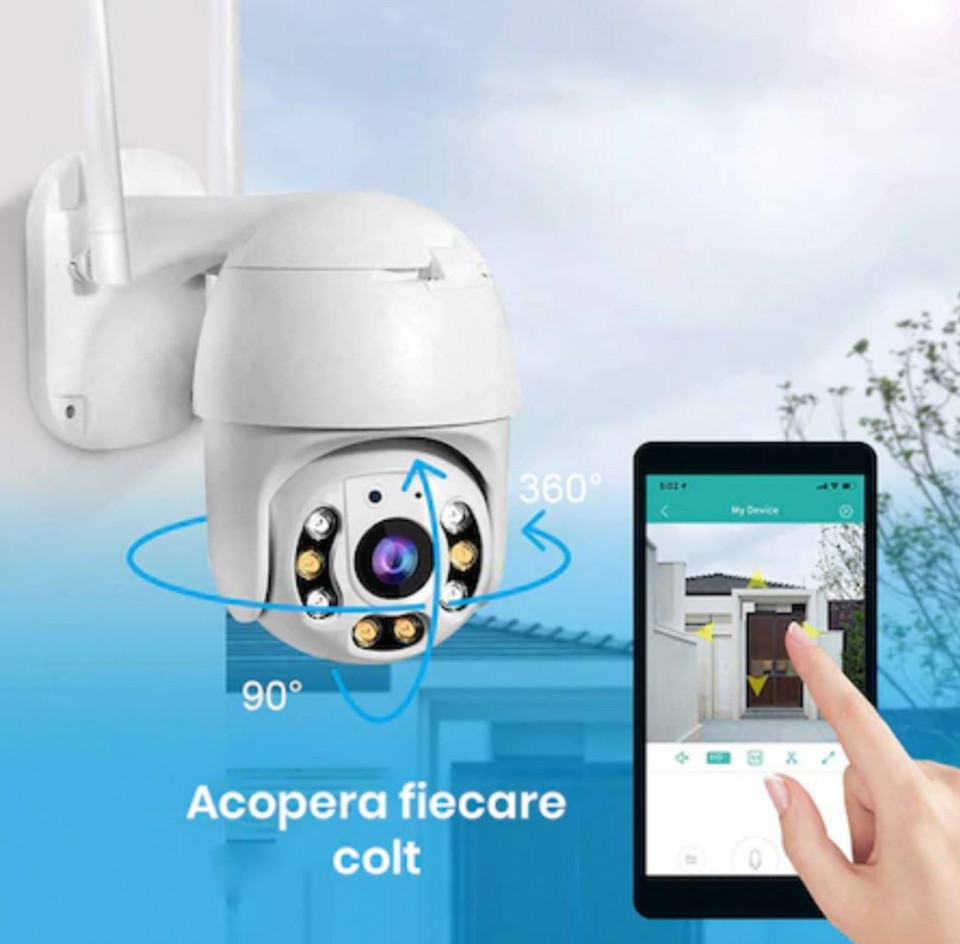

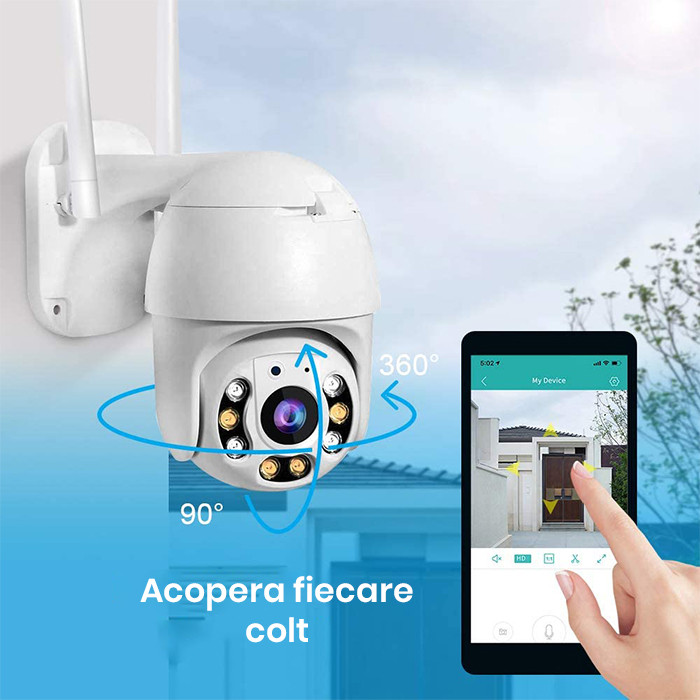

Rotation angle |
Pan: 320 deg, Vertical: 90 deg |
Night Vision |
IR-CUT |
Infrared night vision, color filter automatically switch |
Night vision |
Support |
Alarm |
Alarm detection |
Motion Detection |
Detection area |
Support 1 independent screen detection |
Alarm notification |
iPhone,Android Alarm |
Physical characteristics |
Shape material |
ABS |
Use environment |

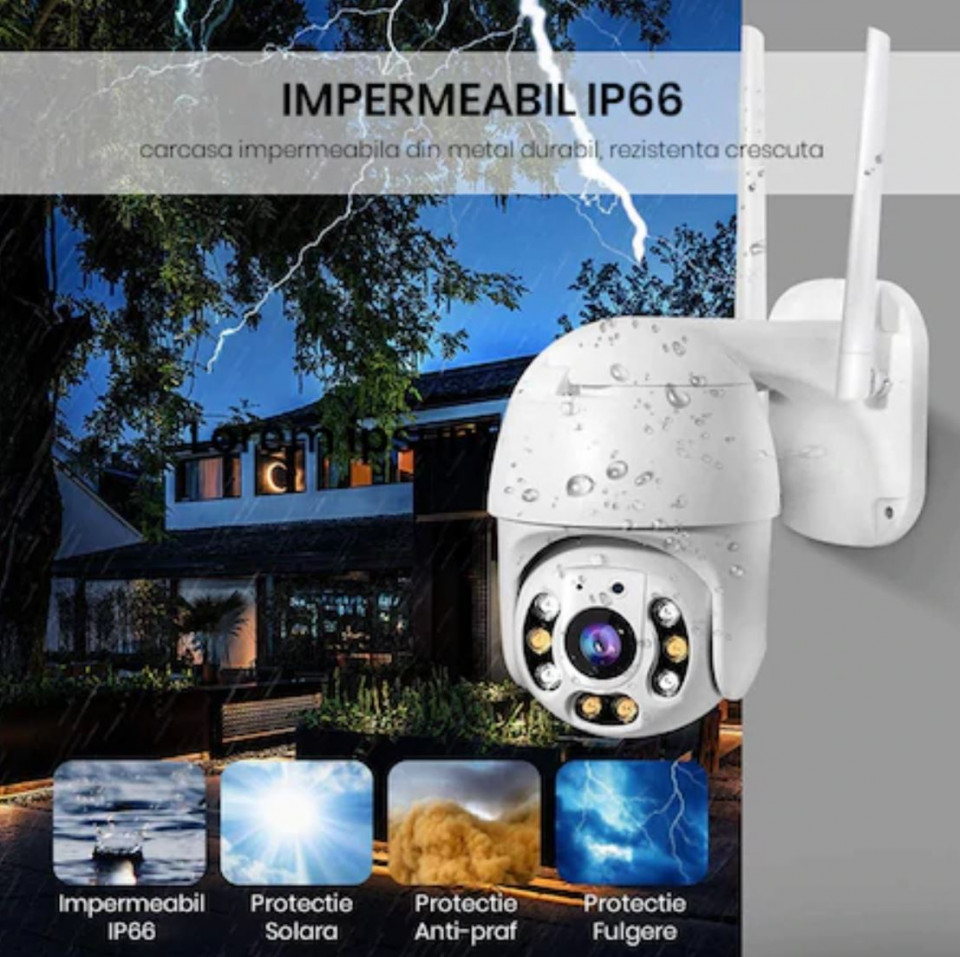

Outdoor waterproof |
Power consumption |
DC12V/ 2A (For Optional Choose) |
Operating temperature |
-20 C~+50C |
Working humidity |
10%~80% |
Weight |
Net weight: 0.5kg |
Gross weight:0.7kg |
Parts |
Manual,Bracket,Screws |
Operating environment |
Centralized monitoring of computer systems |
Microsoft XP,Vista,Win7,Win8 |
Browser |
Internet Explorer6.0,7.0,8.0,9.0,10, Firefox, Google, Safari, etc. |
